Vertex InfoLink - Coming Soon
Estimated release Q4 2026
Optimize Operations · Improve Efficiency

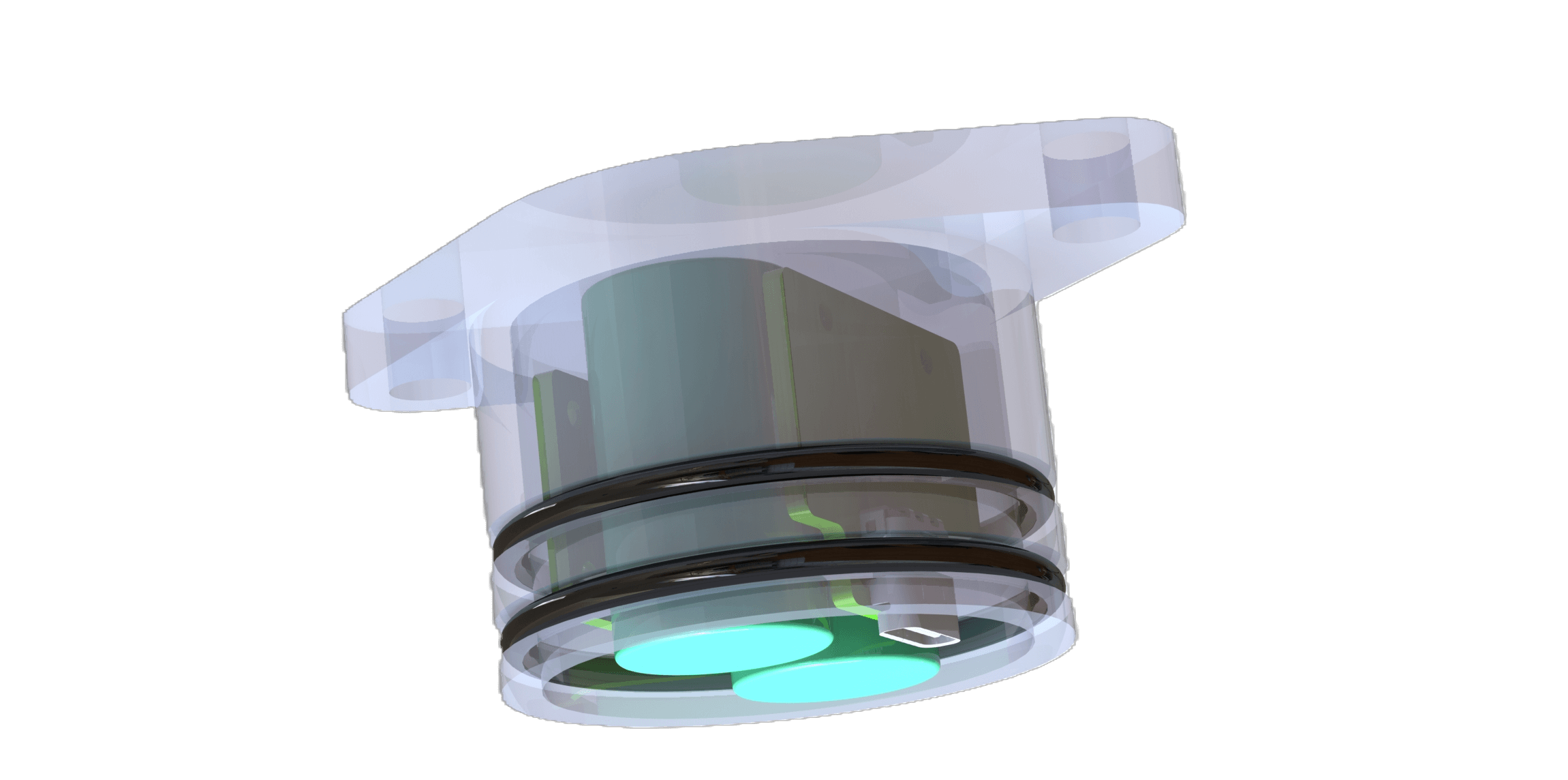

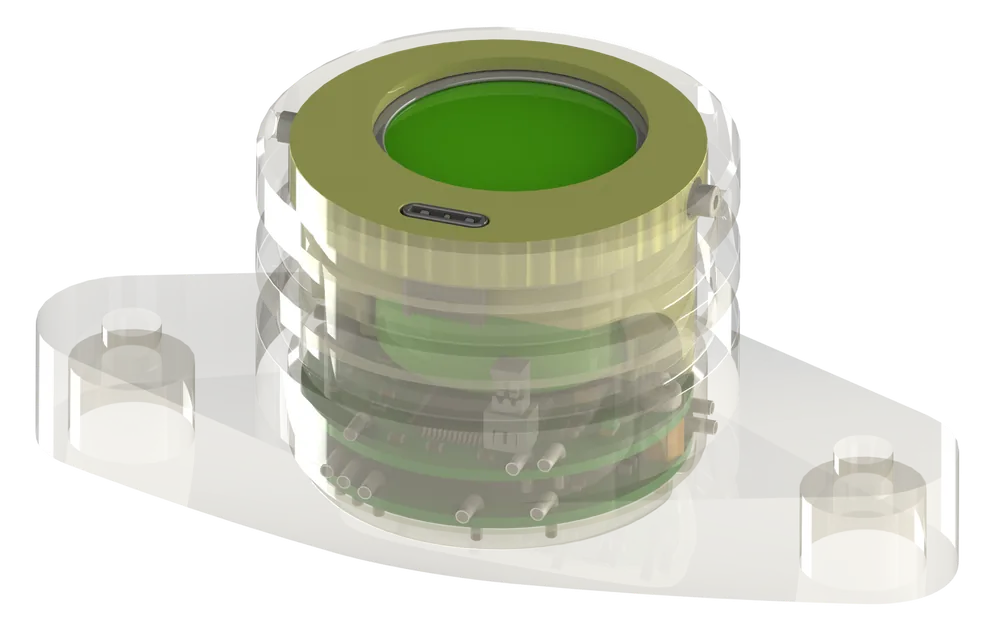

The Vertex InfoLink provides clients the ability to measure high frequency shock, vibe, and rotational data — enabling the identification of drilling dysfunctions and optimizing drilling operations. Improving efficiency, reducing MTBF, and optimizing operational costs.
With the capability of operating in two modes, clients can choose the frequency and thresholds for each independent measurement, optimizing the sensor pack for specific requirements.
- Customizable operating modes
- Field-replaceable batteries
- Custom mounting configurations
- High-frequency post-run analysis
InfoLink Specifications
High-G Accelerometer
Measurement range:
±200 g
Measurement bandwidth:
3200 Hz
Axes:
X, Y, Z (3-axis)
Measurement sensitivity:
100 mg
Peak maximum offset:
±3 g
Low-G Accelerometer
Measurement range:
±16 g
Measurement bandwidth:
4 kHz
Axes:
X, Y, Z (3-axis)
Measurement sensitivity:
533.3 µg
Gyroscope
Measurement range:
±4000 dps (667 rpm)
Measurement bandwidth:
3333 Hz
Axes:
X, Y, Z (3-axis)
Angular rate sensitivity:
140 mdps (0.023 rpm)
Temperature Measurement
Measurement range:
−50°C to 150°C
Measurement accuracy:
±0.4°C (±2.7°C max)
Data Storage & Power Monitoring
Data storage capacity:
8,192 MB
Battery voltage sensitivity:
0.5 mV (real-time)
Battery current sensitivity:
20 µA (real-time)
*Specifications may be subject to design changes
Optimize Your Drilling Operations
Discover how InfoLink technology can enhance your drilling efficiency through high-frequency data measurement and analysis. Contact our specialists to learn more about optimizing your operations.
